DYNAMIC PRODUCT CATALOGUE
Our Products
Find the Right Cable by Application
Select an application tag below to instantly narrow down our cable configurations
Conductors

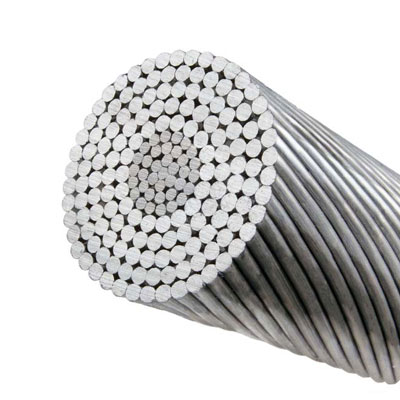

AAAC Conductors (All Aluminium Alloy Conductor)
Currency Cables AAAC Conductors (All Aluminium Alloy Conductor) are high-strength bare overhead transmission lines manufactured from heat-treated, high-grade Aluminium-Magnesium-Silicon alloy (ALMELEC / 6201 series). Concentrically stranded in compliance with IS 398 (Part 4), IEC 61089, and BS 3242 standards, AAAC conductors combine high electrical conductivity with mechanical tensile strength comparable to conventional ACSR conductors. Because they are constructed entirely from a homogeneous, heat-treated aluminium alloy with zero internal steel, Currency AAAC lines eliminate bimetallic corrosion, significantly lower power transmission losses, and deliver superior strength-to-weight ratios across long distribution spans in corrosive coastal, marshy, and industrial environments.
Conductors
AAC Conductors (All Aluminium Conductor)
Currency Cables AAC Conductors (All Aluminium Conductor) are bare overhead transmission lines manufactured exclusively with high-purity, hard-drawn electrolytic EC-grade aluminium wires stranded in concentric helical layers. Engineered in strict compliance with IS 398 (Part 1), BS 215 (Part 1), and IEC 61089, these conductors provide high electrical conductivity, low weight, and natural corrosion resistance. Because AAC contains no internal steel core, it eliminates bimetallic galvanic corrosion, making it suitable for low-to-medium voltage urban distribution grids, coastal power corridors, and high-density industrial zones where pole spans are short and atmospheric salt or chemical moisture is high.
Conductors
ACSR Conductors (Aluminium Conductor Steel Reinforced)
Currency Cables ACSR Conductors (Aluminium Conductor Steel Reinforced) are standard bare overhead transmission lines engineered for primary transmission networks and distribution grids. Featuring a concentric-lay stranded design, these conductors combine high-conductivity EC-grade aluminium outer strands around a solid or stranded high-tensile galvanized steel core. Manufactured in strict conformity with IS 398 (Part 2) and international utility standards, Currency ACSR conductors deliver high mechanical tensile strength with minimal thermal line sag, allowing utilities and EPC contractors to achieve extended tower spans across rivers, highways, and rugged terrains with lower overall infrastructure costs.
Wires & Cables
Aerial Bunched Cables (LT ABC)
Currency Cables Aerial Bunched Cables (LT ABC) are modern overhead power distribution conductors engineered to replace bare overhead lines in rural, urban, and forested distribution networks. Manufactured with high-grade stranded EC-grade aluminium phase conductors insulated with carbon-black-loaded, weather-resistant Cross-Linked Polyethylene (XLPE), these cables are spirally twisted around a high-tensile aluminium alloy (AAAC) messenger wire. Built in compliance with IS 14255 standards, Currency LT ABC systems eliminate power theft via direct tapping, prevent transient phase-to-phase faults from falling tree branches, and ensure high human safety in densely populated corridors.
Wires & Cables
Control Cables
Currency Cables Control Cables are precision-engineered multi-core conductors designed to transmit vital control signals, measuring telemetry, and operating currents to automated machinery, protection relays, and industrial switchboards. Manufactured with high-conductivity electrolytic-grade annealed copper conductors in solid (Class 1) or stranded (Class 2) configurations, these cables feature high-dielectric PVC or XLPE insulation. Built in strict compliance with IS 1554 (Part 1) and IS 7098 (Part 1), our control cables are available in both unarmoured and rugged galvanized steel wire/strip armoured configurations to resist electromagnetic interference, chemical degradation, and mechanical crushing in demanding industrial switchyards.
Wires & Cables
LT Power Cables
Currency Cables Low Tension (LT) Power Cables are heavy-duty conductors engineered for reliable bulk power transmission in industrial plants, utilities, substations, and commercial infrastructure. Available with high-conductivity EC-grade aluminium or electrolytic-grade annealed copper conductors, these cables feature cross-linked polyethylene (XLPE) or high-grade PVC insulation. Built in compliance with IS 7098 (Part 1) and IS 1554 (Part 1), our power cables are protected with galvanized steel wire or flat strip armouring (GI) and a tough outer sheath, safeguarding against high mechanical stress, chemical soil attack, and direct burial wear.
Wires & Cables
Round Multicore Flexible Cables
Currency Cables Round Multicore Flexible Cables are engineered using high-conductivity, electrolytic-grade bright annealed bare copper conductors bunched to Class 5 flexibility standards. Insulated and sheathed with specially formulated in-house PVC compounds, these cables are designed to withstand continuous bending, mechanical vibration, abrasion, and exposure to industrial oils and moisture. Compliant with IS 694 benchmarks, they ensure seamless signal integrity and dependable power distribution in automated production lines, switchboards, machine tools, and dynamic electrical installations.
Wires & Cables
Submersible Cables
Currency Cables 3 Core Flat Submersible Cables are specially manufactured to supply uninterrupted power to submersible pump motors operating deep underground in wells, boreholes, and flooded irrigation sumps. Built with high-purity, bright annealed Class 5 electrolytic bare copper conductors, each core is insulated with a specialized water-resistant, non-hygroscopic PVC/XLPE compound and encased in a tough, impermeable outer sheath. Engineered to comply strictly with IS 694 and IS 8130 benchmarks, these flat cables endure continuous hydrostatic pressure, fluctuating sub-soil water conditions, dissolved minerals, and severe mechanical pulling tension.
Wires & Cables
FR/FRLS-H Single Core Wires
Currency Cables FR (Flame Retardant) and FRLS-H (Flame Retardant Low Smoke Halogen) Single Core Flexible Wires are engineered for safe residential, commercial, and institutional power distribution. Manufactured using 99.97% pure electrolytic grade, bright-annealed bare copper conductors bunched to Class 5 flexibility, each wire is insulated with high-grade, self-extinguishing PVC compound. Certified to IS 694 benchmarks, these wires are designed to suppress flame propagation, minimize toxic acid gas emissions, and maintain visibility during emergency evacuations.
